16" X 1 Single Convoluted Rubber Air Spring W01R584066 Firestone Air Bags For Molding Equipment

পণ্যের বিবরণ:

উৎপত্তি স্থল:	গুয়াংডং, চীন
পরিচিতিমুলক নাম:	GUOMAT
সাক্ষ্যদান:	ISO/TS16949:2009
মডেল নম্বার:	1B16X1T

প্রদান:

ন্যূনতম চাহিদার পরিমাণ:	6 পিসি
মূল্য:	আলোচনাযোগ্য
প্যাকেজিং বিবরণ:	শক্তিশালী শক্ত কাগজ বাক্স বা গ্রাহকদের প্রয়োজন হিসাবে
ডেলিভারি সময়:	2-8 কাজের দিন
পরিশোধের শর্ত:	এল/সি, ডি/এ, ডি/পি, টি/টি, ওয়েস্টার্ন ইউনিয়ন
যোগানের ক্ষমতা:	1000 পিসি/সপ্তাহ

যোগাযোগ

বিস্তারিত পণ্যের বর্ণনা

কাজের তাপমাত্রা:	-40℃+70℃	ওয়ারেন্টি:	12 মাস
টাইপ:	সাসপেনশন এয়ার স্প্রিং	রঙ:	কালো
উপাদান:	রাবার + ইস্পাত	প্যাকিং:	হার্ড বক্স নিরপেক্ষ প্যাকিং
ফায়ারস্টোন:	W01-R58-4066	বেলো নং:	16''X1
বিশেষভাবে তুলে ধরা:	16 inch single convoluted rubber air spring , Firestone air bags for molding equipment , W01R584066 rubber air spring with warranty

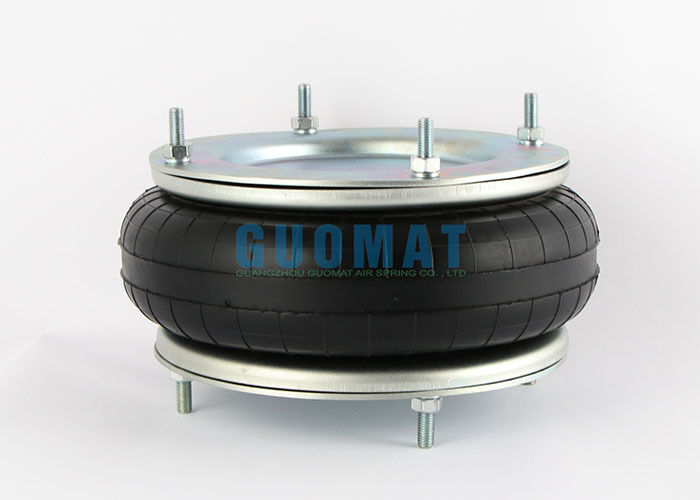

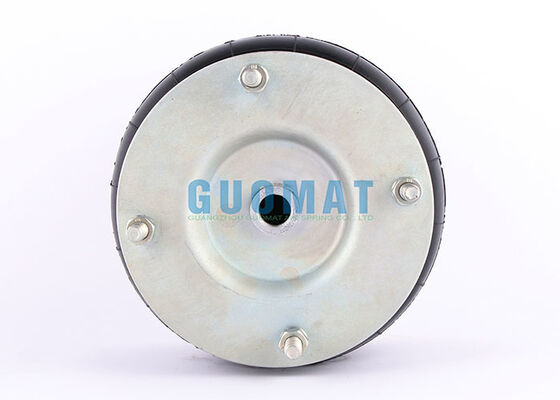

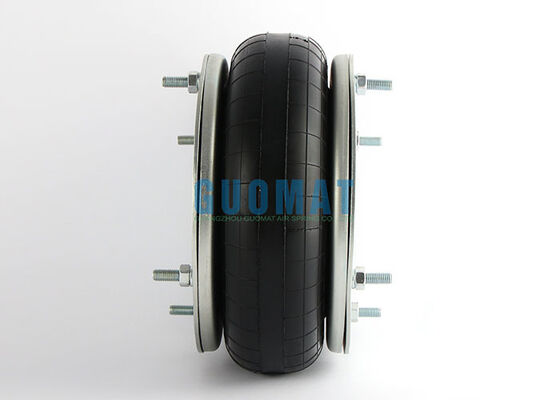

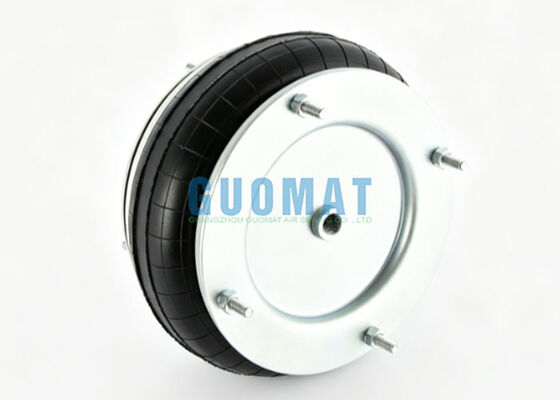

16" X 1 Single Convoluted Rubber Air Spring W01R584066

High-performance replacement air spring designed for molding equipment and industrial machinery applications.

Product Overview

GUOMAT 1B16X1T is a premium single convoluted rubber air spring engineered to replace Firestone W01R584066. Manufactured with natural rubber compounds and reinforced cord fabric construction, this air spring delivers exceptional vibration isolation, shock absorption, and load-bearing performance for demanding industrial applications.

Product Specifications

Type	Single Convoluted Type Air Spring
Brand	GUOMAT
Model No.	1B16X1T
Warranty	12 Months
Material	Rubber + Steel
Quality	Good Quality
Application	Molding Equipment

Cross-Reference Part Numbers

Firestone W01R584066; W01 R58 4066; W01-R58-4066
Firestone 16" x 1 Air Spring
ContiTech FS 816-15 DS; FS816-15 DS; FS816-15DS
Norgren M/31161
Parker Equivalent 9109026

Technical Data

Air port inlet: G1/2"

Recommended/Max pressure: 5.5/8 bar

Force [N]0bar to H (mm): 150 (50)

Weight: 7.00 kg

Maximum height: 440mm

Static height: 130mm

Minimum height: 50mm

Maximum height: 210mm

Recommended height: 190mm

Pressure P (bar)	3	4	5	6	7	8	Vol.V(cm³)
Height H(mm) 50	3016	4084	5180	6174	7208	8243	5016
Height H(mm) 55	2990	4053	5140	6126	7156	8176	5379
Height H(mm) 85	2776	3836	4792	5793	6779	7782	7347
Height H(mm) 130	2259	3160	3973	4794	5646	6529	9848
Height H(mm) 170	1636	2318	2985	3644	4330	5067	11350
Height H(mm) 200	1057	1500	1978	2441	2969	3493	12290
Height H(mm) 210	806	1172	1570	2016	2455	2940	12490

Applications for Molding Equipment

Air bags for molding equipment are essential components in molding machines, die cushion systems, forming presses, and industrial production lines where precise force control and vibration reduction are critical. Compared to conventional metal springs, rubber air springs provide adjustable load capacity, uniform pressure distribution, and superior shock absorption, enhancing molding accuracy and production efficiency.

GUOMAT air bags support heavy loads while maintaining stable performance during repeated molding cycles. The flexible air chamber automatically compensates for minor height variations and absorbs impact forces generated during pressing, stamping, and forming processes, protecting molds, reducing machine wear, and extending equipment service life.

In molding applications, air springs serve as die cushions, force actuators, vibration isolators, and load-support components. Their consistent force throughout the stroke makes them ideal for metal forming, plastic molding, rubber processing, composite material manufacturing, and automated production systems.

With excellent durability, low maintenance requirements, and reliable performance under continuous operation, GUOMAT rubber air bags help manufacturers achieve higher product quality, improved process stability, and reduced maintenance costs in demanding industrial environments.
