W01-358-7244 Double Convoluted Air Spring 201 Style Air Bellows Suspension

W01-358-7244 Double Convoluted Air Spring 201 Style Air Bellows Suspension

  • W01-358-7244 Double Convoluted Air Spring 201 Style Air Bellows Suspension
  • W01-358-7244 Double Convoluted Air Spring 201 Style Air Bellows Suspension
W01-358-7244 Double Convoluted Air Spring 201 Style Air Bellows Suspension
পণ্যের বিবরণ:
উৎপত্তি স্থল: গুয়াংডং, চীন
পরিচিতিমুলক নাম: GUOMAT
সাক্ষ্যদান: ISO/TS16949:2009
মডেল নম্বার: 2H7244
প্রদান:
ন্যূনতম চাহিদার পরিমাণ: 6 পিসি
মূল্য: আলোচনাযোগ্য
প্যাকেজিং বিবরণ: শক্তিশালী শক্ত কাগজ বাক্স বা গ্রাহকদের প্রয়োজন হিসাবে
ডেলিভারি সময়: 2-8 কাজের দিন
পরিশোধের শর্ত: এল/সি, ডি/এ, ডি/পি, টি/টি, ওয়েস্টার্ন ইউনিয়ন
যোগানের ক্ষমতা: 1000 পিসি/সপ্তাহ
যোগাযোগ
বিস্তারিত পণ্যের বর্ণনা
উপাদান: রাবার লোড প্রকার: কম্প্রেশন
বাম্পার ব্লক: ছাড়া বন্দর: হুয়াংপু, চীন
প্যাকিং: নিরপেক্ষ বাক্স বা গ্রাহকদের অনুরোধ হিসাবে ওয়ারেন্টি: এক বছর
কাজের চাপ: 2-8 এমপিএ ফায়ারস্টোন: W01-358-7244
বিশেষভাবে তুলে ধরা:

Double Convoluted Air Spring

,

201 Style Air Bellows

,

Rubber Air Spring Suspension

W01-358-7244 Double Convoluted Air Spring 201 Style Air Bellows Suspension
The GUOMAT 2H7244 Rubber Air Spring is a premium-quality double convoluted air bellows designed for industrial vibration isolation, shock absorption, and pneumatic actuation applications. Engineered to replace Firestone W01-358-7244 (Style 28), this air spring delivers reliable load support and excellent dynamic performance in a wide variety of industrial equipment.
Featuring a double convoluted rubber bellows construction, the GUOMAT 2H7244 provides a larger effective area and improved flexibility compared to conventional mechanical springs. The air-filled design allows the spring rate to adjust automatically according to load changes, helping maintain stable operation while reducing transmitted vibration and noise.
Manufactured using high-grade natural rubber reinforced with durable cord fabric, the air spring offers excellent fatigue resistance and long service life. Heavy-duty steel mounting plates provide secure installation and dependable performance even under continuous industrial use.
Product Specifications
Type: Rubber Air Spring
Model: 2H7244
Brand: GUOMAT
Warranty: 1 Year
Material: Rubber + Steel
Style: 28 Style Double Convoluted Air Spring
Alternative Part Numbers
Firestone Style 201
  • FIRESTONE STYLE: 201
  • FIRESTONE STYLE: W013587244
  • FIRESTONE STYLE: W01 358 7244
  • FIRESTONE STYLE: W01-358-7244
High Strength Bellows with Ribbed Neck Aluminum Bead Rings
  • W013587244 / W01 358 7244 / W01-358-7244
  • WO13587244 / WO1 358 7244 / WO1-358-7244
High Strength Bellows - Rubber Bellows Only
  • W011390201 / W01 139 0201 / W01-139-0201
  • WO11390201 / WO1 139 0201 / WO1-139-0201
Firestone 28 Style Rubber Air Spring Variants
Part Number Description
W01-358-7191 Ribbed neck aluminum bead rings (equal spacing)
W01-358-7194 Ribbed neck aluminum bead rings (equal spacing) 1 7/8 b,n,w
W01-358-7192 Ribbed neck aluminum bead rings (equal spacing) 1 1/4 b,n,w
W01-358-7271 Rolled plate assembly, 1/2 blind nut 3/4NPT
W01-358-7925 Rubber bellows only

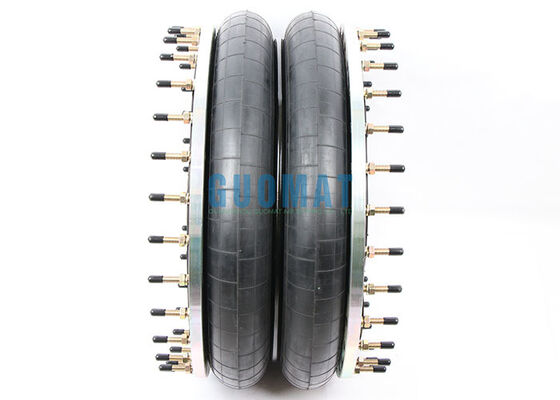

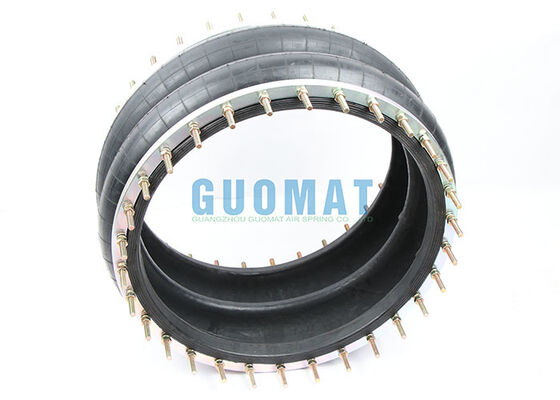

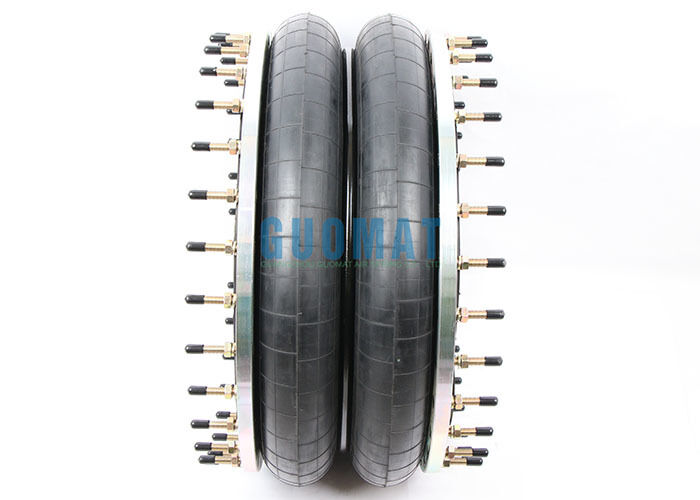

GUOMAT 2H7244 Double Convoluted Air Spring - Front View GUOMAT 2H7244 Double Convoluted Air Spring - Side View
