W01-095-0211 Firestone Rubber Air Spring 1R1A-480-330 Contitech Bus Suspension Air Bellows 737N

W01-095-0211 Firestone Rubber Air Spring 1R1A-480-330 Contitech Bus Suspension Air Bellows 737N

  • W01-095-0211 Firestone Rubber Air Spring 1R1A-480-330 Contitech Bus Suspension Air Bellows 737N
  • W01-095-0211 Firestone Rubber Air Spring 1R1A-480-330 Contitech Bus Suspension Air Bellows 737N
  • W01-095-0211 Firestone Rubber Air Spring 1R1A-480-330 Contitech Bus Suspension Air Bellows 737N
  • W01-095-0211 Firestone Rubber Air Spring 1R1A-480-330 Contitech Bus Suspension Air Bellows 737N
W01-095-0211 Firestone Rubber Air Spring 1R1A-480-330 Contitech Bus Suspension Air Bellows 737N
পণ্যের বিবরণ:
উৎপত্তি স্থল: গুয়াংডং, চীন
পরিচিতিমুলক নাম: GUOMAT
সাক্ষ্যদান: ISO/TS16949:2009
মডেল নম্বার: 737N
প্রদান:
ন্যূনতম চাহিদার পরিমাণ: 6 পিসি
মূল্য: $19.9/pc-$29.9/pc
প্যাকেজিং বিবরণ: শক্তিশালী কার্টন বক্স বা গ্রাহকদের প্রয়োজন হিসাবে
ডেলিভারি সময়: 2-8 কাজের দিন
পরিশোধের শর্ত: টি/টি, ওয়েস্টার্ন ইউনিয়ন, এল/সি
যোগানের ক্ষমতা: 1000pcs/সপ্তাহ
যোগাযোগ
বিস্তারিত পণ্যের বর্ণনা
মডেল নাম: বাসের এয়ার স্প্রিং বসন্ত উপাদান: প্রাকৃতিক রাবার
ওয়ারেন্টি: 12 মাসের ওয়ারেন্টি রঙ: কালো
গাড়ির মডেল: বাস প্যাকেজ: বাদামী শক্ত কাগজ বাক্স
টাইপ: এয়ার বেলো টাইপ গুডইয়ার: 9075
বিশেষভাবে তুলে ধরা:

Firestone rubber air spring 1R1A-480-330

,

Contitech bus suspension air bellow

,

737N rubber air spring with warranty

W01-095-0211 Firestone Rubber Air Spring 1R1A-480-330 Contitech Bus Suspension Air Bellows 737N

Item Name: Bus Air Suspension Spring

Model: 737N

Warranty: 12 Months

Material: High Quality Rubber

Car Make: Mercedes Benz

Special Features: Vibration

Market: Aftermarket

Sample: Acceptable

Item Width: 265mm

Item Inner Diameter: 130.8mm

Item Design Height: 485mm

OEM Number of 737N

Contitech Bellows Number: 737N, 737 N

Firestone Part Number: W01-095-0211, W01 095 0211, W010950211

Firestone Style Number: 1R2A-480-330

Goodyear Part Number: 9075

Goodyear Flex Number: 556-03-9075, 556 03 9075, 556039075

Manufacturer Part Number
Airtech 110162
Airtech Ref. 3737
Blacktech RL9848
Dunlop F D13S06
Neotec AB434B
Phoenix 1F26
Prime-Ride New 9075
Prime-Ride New Flex No. 556-03-9075
Springride 9075
Springride Flex 556-03-9075
Taurus B127
Taurus BL127
Vibracoustic V1F26
Mercedes Benz 393.328.0101
Functions of Bus Suspension Air Springs
Function Category Core Function Specific Description & Mechanism
Fundamental Core Function Adaptive Load Support & Automatic Leveling
  • Variable Stiffness: Adjusts internal air pressure to adapt to changing vehicle loads (empty/full), providing consistent support.
  • Maintains Level: Automatically keeps the vehicle body at a pre-set height regardless of load, ensuring stable headlight alignment, suspension geometry, and ground clearance.
Ride & Comfort Function Superior Ride Comfort
  • Excellent Vibration Damping: Uses compressed air as an elastic medium to effectively absorb and isolate road shocks and vibrations.
  • Stable Frequency: Maintains the system's natural frequency within the range most comfortable for the human body (approx. 1-1.5 Hz) across various loads, providing a "magic carpet" ride.
Safety & Handling Function Enhanced Handling & Safety
  • Improved Road Holding: The soft spring characteristic allows the tires to better follow road contours, increasing grip and improving stability and braking efficiency on slippery surfaces.
  • Reduces Body Roll & Pitch: Effectively minimizes body lean during cornering and "dive" during braking, enhancing control and safety.
Convenience & Auxiliary Function Body Height Adjustment
  • Kneeling Function: Lowers the bus at a stop to create a step-less entry, greatly assisting the elderly, children, and passengers with reduced mobility.
  • Variable Clearance: Raises the body for rough terrain and lowers it for high-speed driving to improve aerodynamics and fuel economy.
Vehicle Protection Function Protects Vehicle & Components
  • Shock Absorption: Significantly reduces the transmission of road impacts to the vehicle frame, body, and driveline components, extending overall service life.
  • Protects Cargo: The smooth ride minimizes vibration damage to onboard equipment and passenger luggage.
Related Pictures

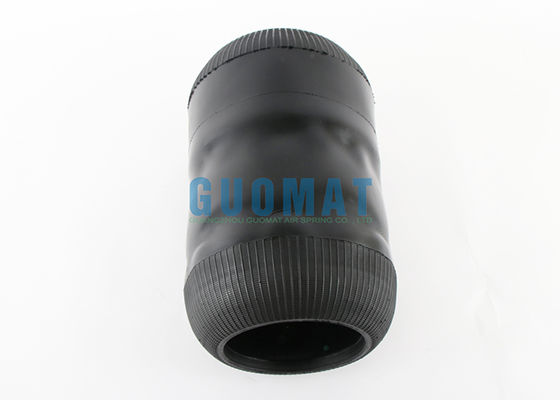

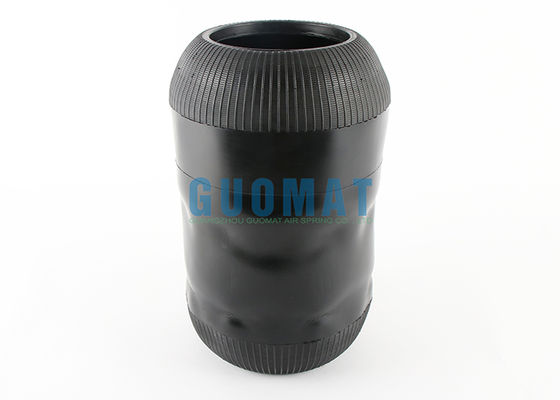

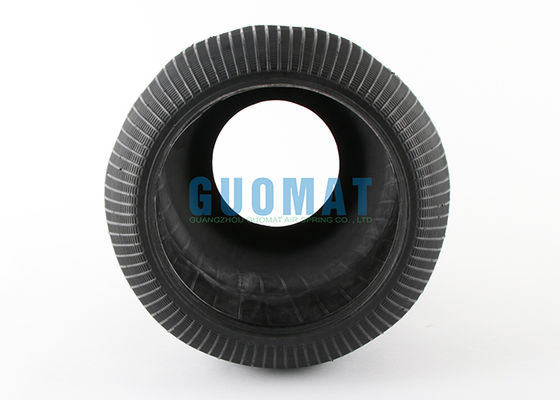

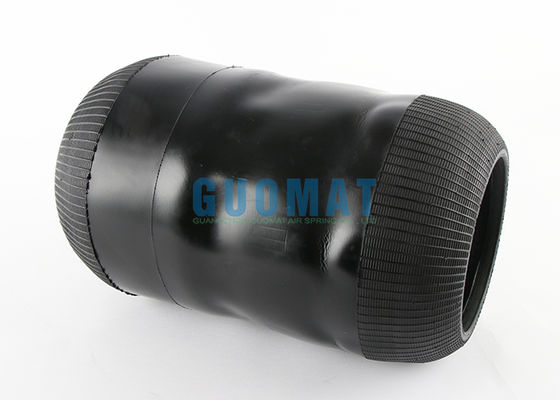

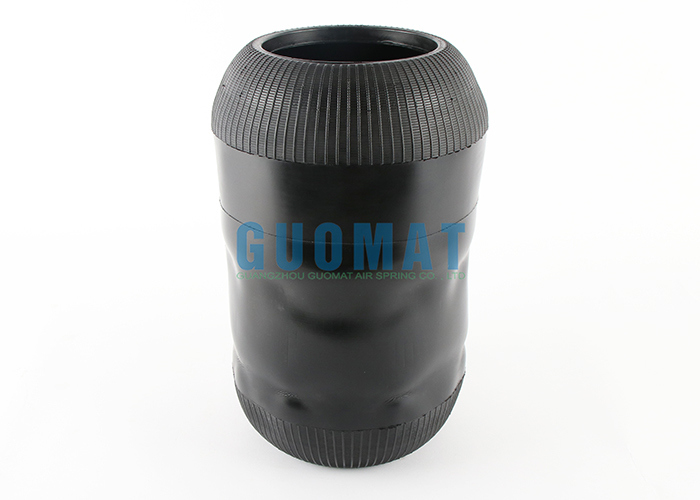

W01-095-0211 Firestone Rubber Air Spring 1R1A-480-330 Contitech Bus Suspension Air Bellows 737N 0 W01-095-0211 Firestone Rubber Air Spring 1R1A-480-330 Contitech Bus Suspension Air Bellows 737N 1
